If you’ve updated your hybrid app to target Android 15 (API 34) and noticed broken layouts, cut-off content, or overlapping UI — you’re not alone.

Android is evolving to embrace immersive, edge-to-edge design. But hybrid apps built using Capacitor, Cordova, or Ionic often break because they rely on WebView, which doesn’t automatically adapt to system gesture insets or modern screen shapes.

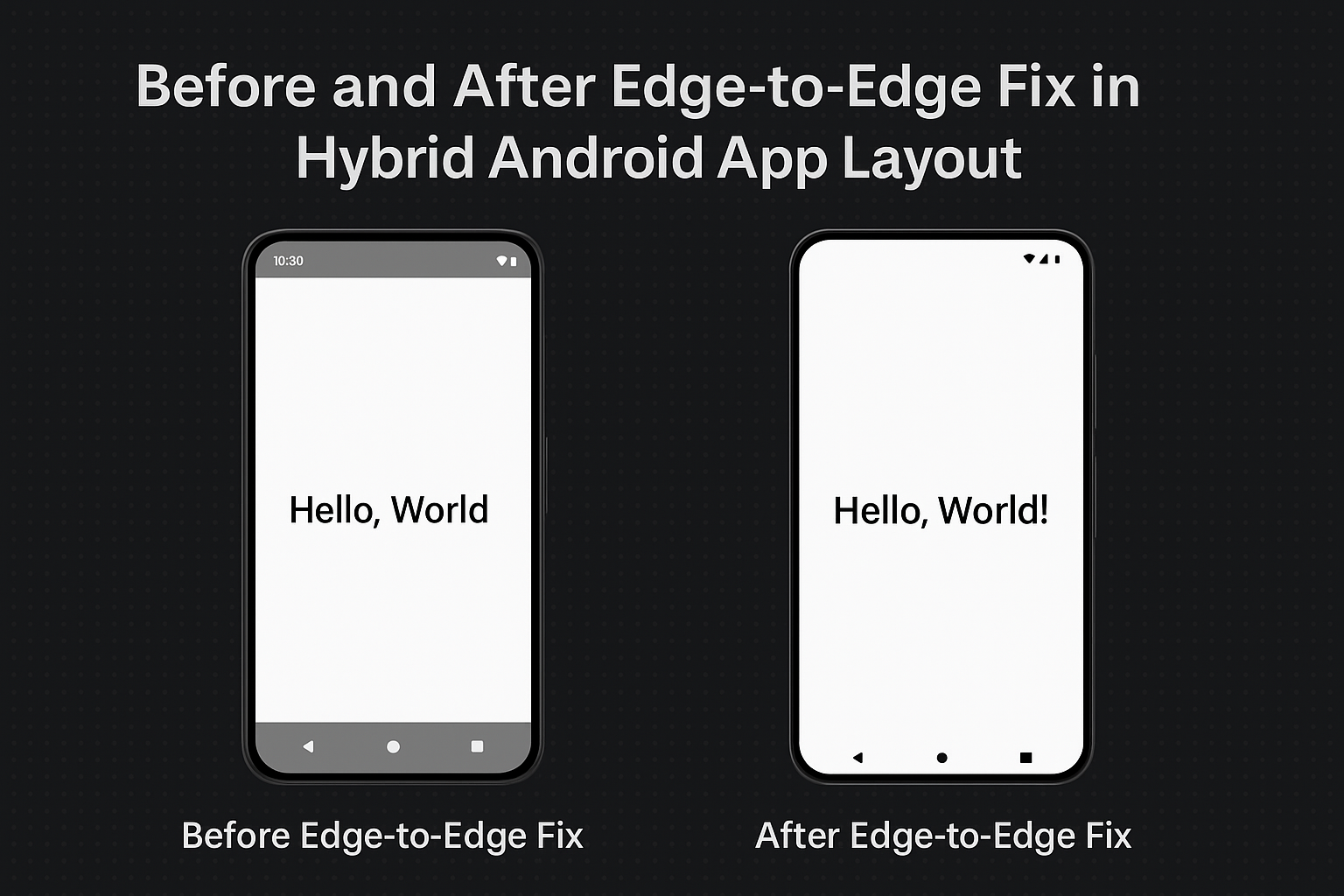

🌐 What is Edge-to-Edge UI?

Edge-to-edge layout means your app’s content extends beneath the status bar, navigation bar, and gesture areas — using every available pixel.

Android encourages this layout to support:

• Immersive design on full-screen devices
• Compatibility with gesture navigation
• Maximum space usage on notch, punch-hole, and curved displays

Read the official Android Edge-to-Edge Design Guide.

🎯 Why Was It Introduced?

1. Maximize screen real estate — avoid wasting space on top/bottom bars.
2. Gesture navigation compatibility — gestures now replace buttons.
3. Modern UX standards — aligned with Google’s Material You design language.
4. Cross-device consistency — Pixel, Samsung, OnePlus now follow Android’s rules.

💥 Why Hybrid Apps Break

Hybrid apps rely on WebView, which doesn’t adapt automatically to insets. The result?

• Content may get hidden behind the system UI
• Safe areas are ignored unless manually defined
• CSS-only solutions fail unless the native layer is configured correctly

🛠 How to Fix Edge-to-Edge in Hybrid Apps

✅ 1. Set Target SDK to 34

compileSdkVersion 34
targetSdkVersion 34

✅ 2. Update Native Code for Insets

In MainActivity.java or MainActivity.kt:Java:

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
  getWindow().setDecorFitsSystemWindows(false);
} else {
  getWindow().getDecorView().setSystemUiVisibility(
    View.SYSTEM_UI_FLAG_LAYOUT_STABLE |
    View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN |
    View.SYSTEM_UI_FLAG_LAYOUT_HIDE_NAVIGATION
  );
}

Kotlin:

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
  window.setDecorFitsSystemWindows(false)
} else {
  window.decorView.systemUiVisibility = (
    View.SYSTEM_UI_FLAG_LAYOUT_STABLE or
    View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN or
    View.SYSTEM_UI_FLAG_LAYOUT_HIDE_NAVIGATION
  )
}

✅ 3. Make System Bars Transparent

In styles.xml:

<item name="android:statusBarColor">@android:color/transparent</item>
<item name="android:navigationBarColor">@android:color/transparent</item>

✅ 4. Handle Safe Areas in CSS

html, body {
  padding-top: env(safe-area-inset-top);
  padding-bottom: env(safe-area-inset-bottom);
  padding-left: env(safe-area-inset-left);
  padding-right: env(safe-area-inset-right);
}

For Ionic:

:root {
  --ion-safe-area-top: env(safe-area-inset-top);
  --ion-safe-area-bottom: env(safe-area-inset-bottom);
}

✅ 5. Respect Gesture Areas

Don’t place buttons or toolbars flush against screen edges. Use padding or bottom spacing to avoid gesture interference.

🧪 Debug Tip

Use Android Studio Layout Inspector or this ADB command to inspect insets:

adb shell dumpsys window | grep -i inset

🔗 External Resources

• Android Edge-to-Edge UI
• Capacitor Android Native Code
• MDN: CSS env() & Safe Area

✅ Conclusion

Edge-to-edge layout isn’t just a design trend — it’s a requirement. Android 15 pushes for immersive, gesture-friendly apps. While hybrid apps need extra configuration, the result is a modern, polished experience that feels native.

By combining native insets with smart CSS, your hybrid app can look and behave like a top-tier Android experience — ready for the future.

---

Happy learnings!
